Description
Autel MaxiCharger AC Wallbox 7kW – Fast & Smart EV Charging
Powerful & Intelligent Home Charging Solution

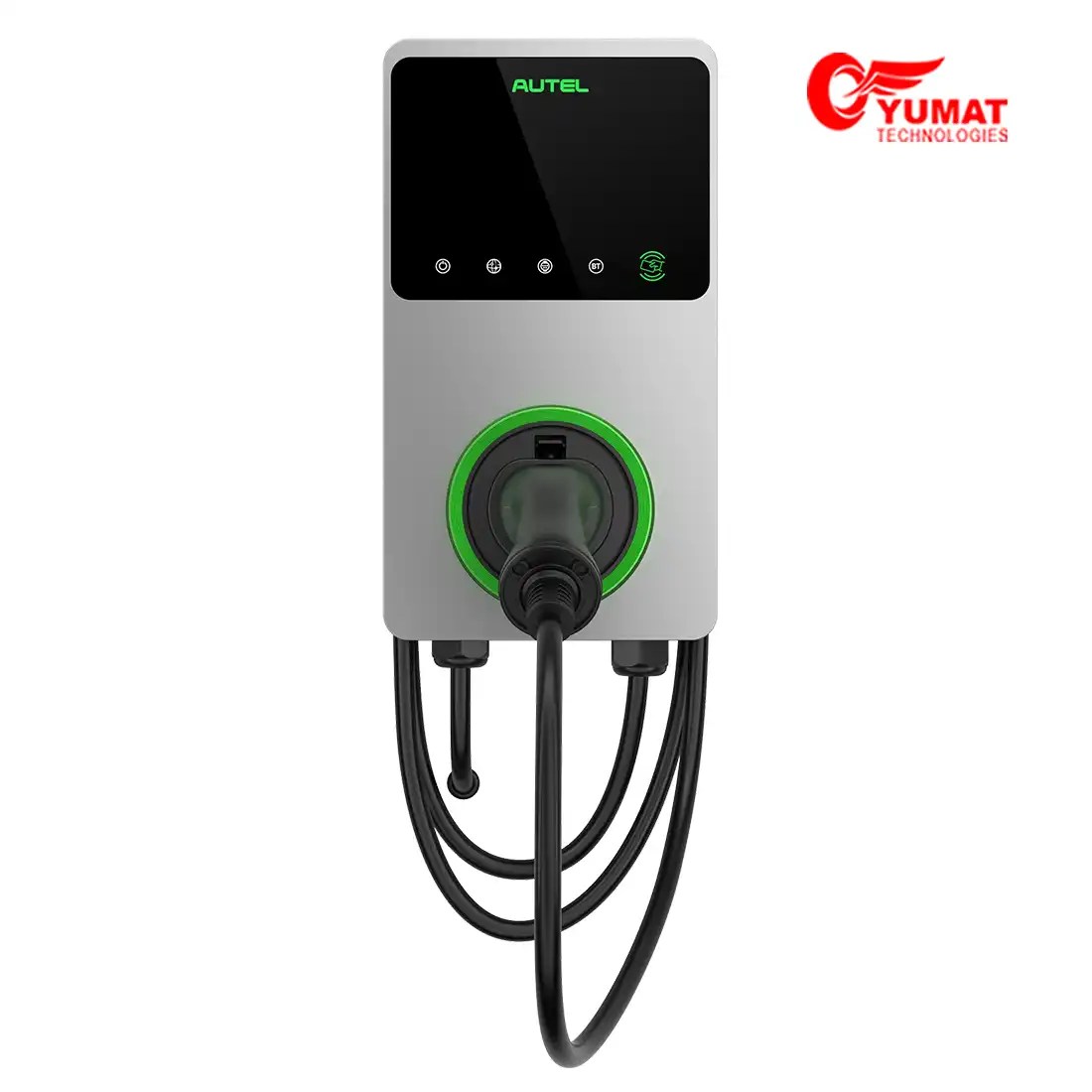

The Autel MaxiCharger AC Wallbox 7kW is an advanced Level 2 EV charger that delivers fast and efficient charging for electric vehicles. Whether you’re charging at home or installing a charging station at your business, this charger offers smart connectivity, enhanced safety, and universal compatibility.
|
Charging mode
|
Mode 3, type 2
|
|
Charging power
|
7kW/11kW/22kW
|
|
Rated Current
|
32A
|
|
Rated Frequency
|
50Hz
|
|
Input/output voltage
|
230V±15%, 1P+N+PE
|
|
Network type
|
TT, TN
|
|
RCD
|
AC 30mA, DC 6mA
|
|
RCBO
|
Extenal type A RCBO if specially required
|
|
Protection
|
Overcurrent, overvoltage, undervoltage
|
|
General characteristics
|
|
|
Cable length
|
5m/7.5m (optional)
|
|
IP and IK rating
|
Body IP65, Socket IP54; IK08
|
|
Output interface
|
IEC 62196-2 Type 2 plug
IEC 62196-2 Socket or Socket with shutter (optional) |
|
Operating altitude
|
2000m
|
|
Operating temperature range
|
-40℃~+55℃c
|
|
Storage temperature range
|
-40℃~+85℃
|
|
Mounting
|
Wall or floor using a pedestal
|
|
Weight
|
3600g
|
|
Dimensions (H×W×D)
|
336×187×85mm
|
|
User interface
|
|
|
Status indication
|
LED/APP/LCD (optional)
|
|
User interface
|
Autel Charger APP;
MaxiCharge Service Software |
|
Connectivity
|
4G（optional）, Bluetooth, Wi-Fi, Ethernet
|
|
Communication protocols
|
OCPP 1.6J
|
|
User authentification
|
APP, RFID card, QR code (available with LCD)
|
|
Software update
|
|
|
Software update
|
OTA updates via web portal
|
|
Certification and standards
|
|
|
Safety standards
|
IEC/EN 61851-1, EN 62311, EN 62479, IEC/EN 62955
|
|
Certification
|
CE (TUV)
|
|
Warranty
|
36 months
|
Key Features of the Autel MaxiCharger AC Wallbox 7kW
✅ 7kW Fast Charging for Efficient Power Supply
With a 7kW output, the Autel MaxiCharger AC Wallbox ensures quick and efficient charging for electric vehicles, significantly reducing downtime.
✅ Smart Control via Wi-Fi & Mobile App
The Autel Charge app allows you to monitor and manage your charging session remotely. Features include:
- Start/stop charging remotely
- Track energy consumption in real-time
- Schedule charging to save on electricity costs
- Receive charging alerts and notifications
✅ Universal Compatibility with Type 2 EVs
The Autel MaxiCharger AC Wallbox 7kW is compatible with all Type 2 electric vehicles, making it an excellent choice for Tesla, BMW, Audi, Nissan, Hyundai, and other major EV brands.
✅ Safe & Reliable Charging with Advanced Protection
Built with multiple safety features, this charger ensures:
- Overvoltage & undervoltage protection
- Short circuit & overcurrent prevention
- Leakage detection for safe operation
- IP65-rated weatherproof design for durable outdoor use
✅ Weatherproof & Durable Design
The Autel MaxiCharger AC Wallbox 7kW is IP65-rated, meaning it is protected against water, dust, and extreme temperatures. Whether installed in a garage or outside, it provides long-lasting performance.
✅ Easy Installation & Compact Design
Designed for quick wall-mounted installation, the Autel MaxiCharger AC Wallbox 7kW is compact, sleek, and space-saving, making it ideal for both residential and commercial setups.
Why Choose the Autel MaxiCharger AC Wallbox 7kW?
- Fast & Efficient Charging – 7kW power output for reduced charging time.
- Smart App Control – Wi-Fi & Bluetooth connectivity for remote management.
- Safe & Reliable – Advanced safety protections for worry-free charging.
- Weatherproof Build – IP65-rated for both indoor and outdoor use.
- Universal Compatibility – Works with all Type 2 EVs.
Perfect for Home & Business Charging
✔ Homeowners – Enjoy convenient and controlled EV charging at home.
✔ Businesses & Fleet Operators – Ideal for commercial EV charging points, offices, and rental properties.
What’s in the Box?
- Autel MaxiCharger AC Wallbox 7kW
- Charging Cable (Type 2)
- Mounting Kit & User Manual
Buy the Autel MaxiCharger AC Wallbox 7kW Today!
Upgrade your EV charging setup with the Autel MaxiCharger AC Wallbox 7kW. Whether for home or business use, this high-quality charger provides fast, smart, and reliable charging for all electric vehicles.
